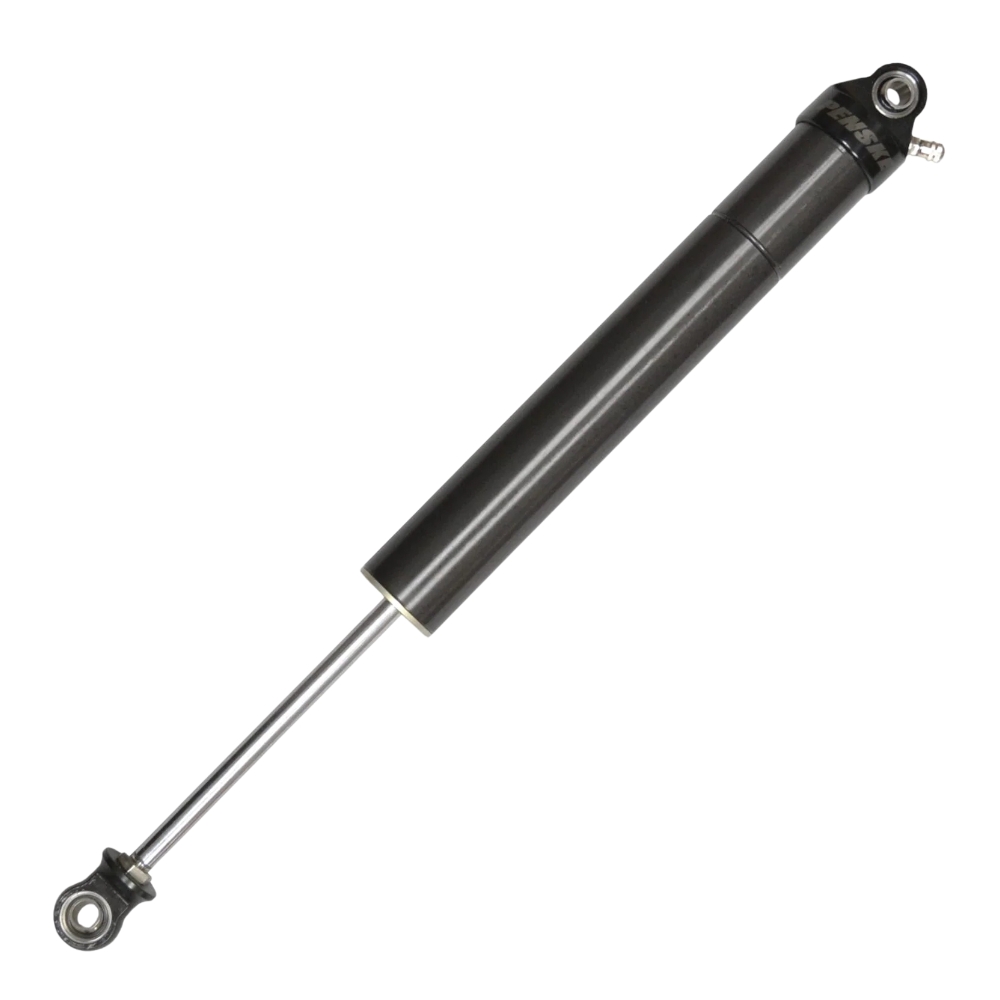

Penske 7100 Steel Shock

The Penske 7100 Steel Shock is the latest short track offering from Penske Racing Shocks. The Penske 7100 Steel Shock was designed for series where “non-bulb” shocks are mandated.  They also work where a price caps exist. The 7100 series is designed to perform with high-quality damping found in any Penske Racing Shock. The Penske 7100 Steel Shock features our standard 1.72” bore and 0.5” shaft, hard chromed for durability.  It has a separator gas piston for optimum performance and oil life. The stroke configurations available are: 7”, 9”, and 10” and it is compatible with standard coil-over kits. The 7100 is a high-performance alternative to other steel shocks on the market.  The 7100 shocks can be built with either a 1/2″ shaft or a 5/8″ shaft.

Part Number / Stroke / Extended Length
PS-7107 *6.70” 20.00”
PS-7109 *8.50” 24.00”
PS-7110 **9.23” 26.25”

*Stroke values achieved with AS-7150SB-S
**Stroke value achieved with AS-75THSB-500

The Penske Racing Shock Advantage

• Built to customer specifications
• Custom-valved for driver feel or chassis set-up
• Owner-rebuildable
• Consistent performance
• Economical to use and replace

Features

• Steel components
• Complies with racing sanctioning body material mandates
• Low-friction floating piston
• Anti-corrosive finish for extreme environments
• Hard chrome plated shaft
• Numerous piston options
• Non-bulb style body cap
• Designed and manufactured in Reading, PA

Options:

• Non-adjustable – fixed bleed jet
• 7.0”, 9.0”, and 10.0” lengths
• Standard, 1.0”, or 2.0” extended eyelets (additional cost)
• Coil-over kit compatible
• Standard Schrader valve or externally sealed gas valve

CALL FOR PRICING AND AVAILABILITY
