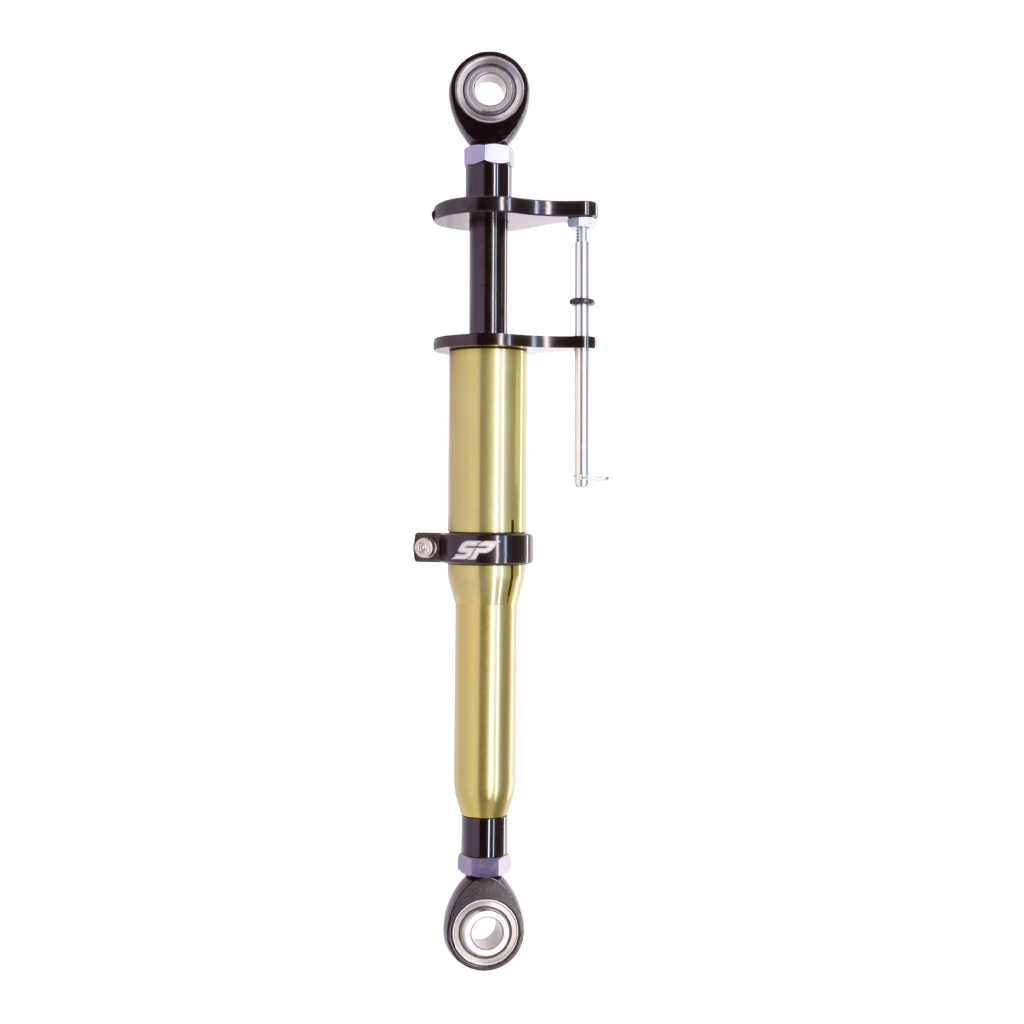

Bump Stick – Quick Adjust

Description

Take control of your suspension tuning with the SP premium bump stick, built for fast, precise bump stop adjustments—without the need to remove shocks or mess with packers. Designed for racers who demand both speed and accuracy, this external-mount stick makes quick bump load changes down to the thousandths with a simple turn.

• 1.2 lbs.
• 7075 billet aluminum for superior strength
• Anodized for enhanced wear resistance
• Proprietary coating on shaft for reduced friction and extended life
• Custom design bushing for smooth operation under load
• Travel indicator is pinned to prevent bump stop loss during adjustments
• Use with or without packers – tunes bump loads in seconds, down to the thousandths
• External mounting for easy access; bolts to any chassis with provisions

• Minimum eye to eye = 11-15/16”
• Maximum eye to eye = 20-1/2”
• Body from eye min. = 8-1/2””
• Body from eye max. = 11-1/8”
• Shaft to eye min. = 9-3/8”
• Shaft to eye max. = 10”
• Bump travel plate gap max. = 3-13/16”

SP Youtube channel: SP bump stop stick instructional video
