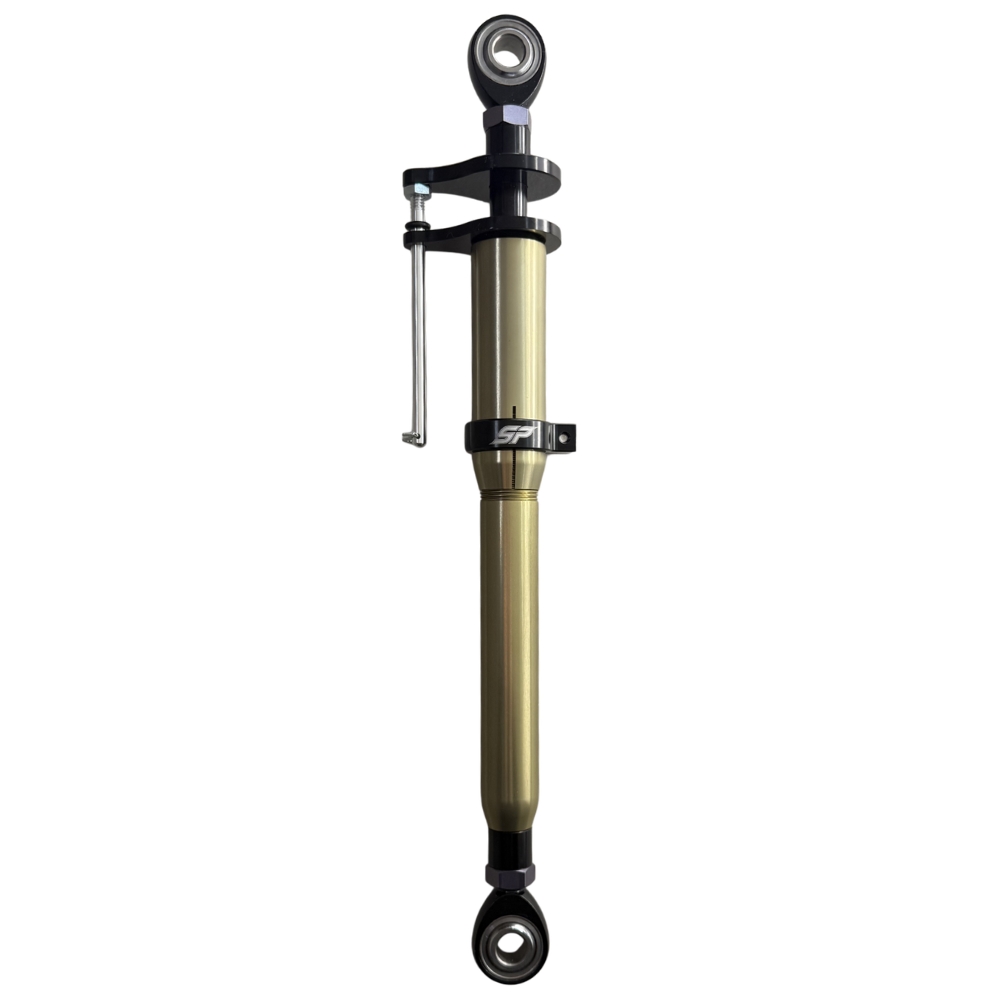

Bump Stick – Quick Adjust

Description

Take control of your suspension tuning with the SP Bump Stick – Quick Adjust, built for fast, precise bump stop adjustments—without the need to remove shocks or mess with packers. Designed for racers who demand both speed and accuracy, this external-mount stick makes quick bump load changes down to the thousandths with a simple turn.

• Weighs only 1.2 lbs.
• Machined from 7075 billet aluminum for superior strength
• Anodized for enhanced wear resistance
• Proprietary coating on shaft for reduced friction and extended life
• Custom design bushing for smooth operation under load
• Travel indicator is pinned to prevent bump stop loss during adjustments
• Use with or without packers – tunes bump loads in seconds, down to the thousandths
• External mounting for easy access; bolts to any chassis with provisions

• Minimum eye to eye = 11-15/16” or 13-15/16″
• Maximum eye to eye = 20-1/2” or 22-1/2″
• Body from eye min. = 8-1/2” or 10-1/2”
• Body from eye max. = 11-1/8” of 13-1/8″
• Shaft to eye min. = 9-3/8”
• Shaft to eye max. = 10”
• Bump travel plate gap max. = 3-13/16”

SP Youtube channel: SP bump stop stick instructional video
